From technical drawing to final product visualization.
A waste-container enclosure project for QUUB.pl. The starting point was technical documentation with marked construction and finish changes. We then created the 3D model, a clean previsualization, an environmental render, final post-production and an additional green-roof product variant.

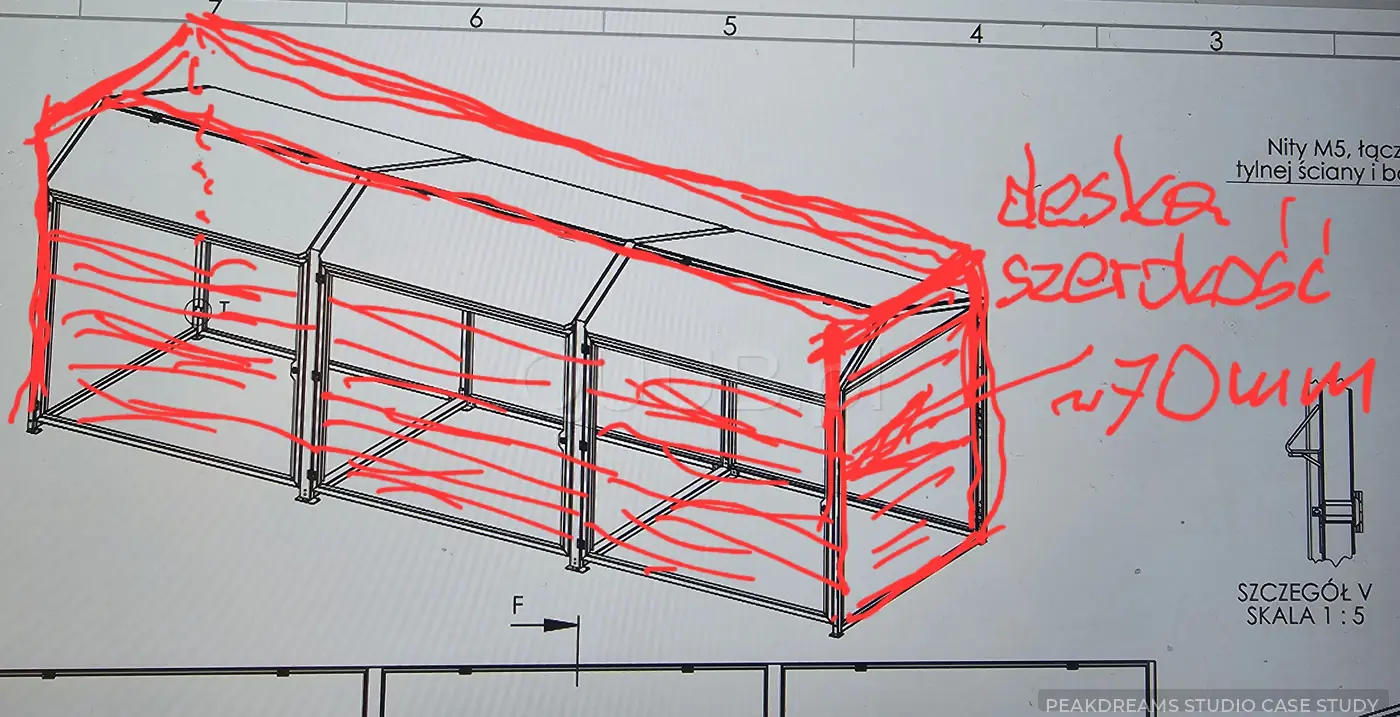

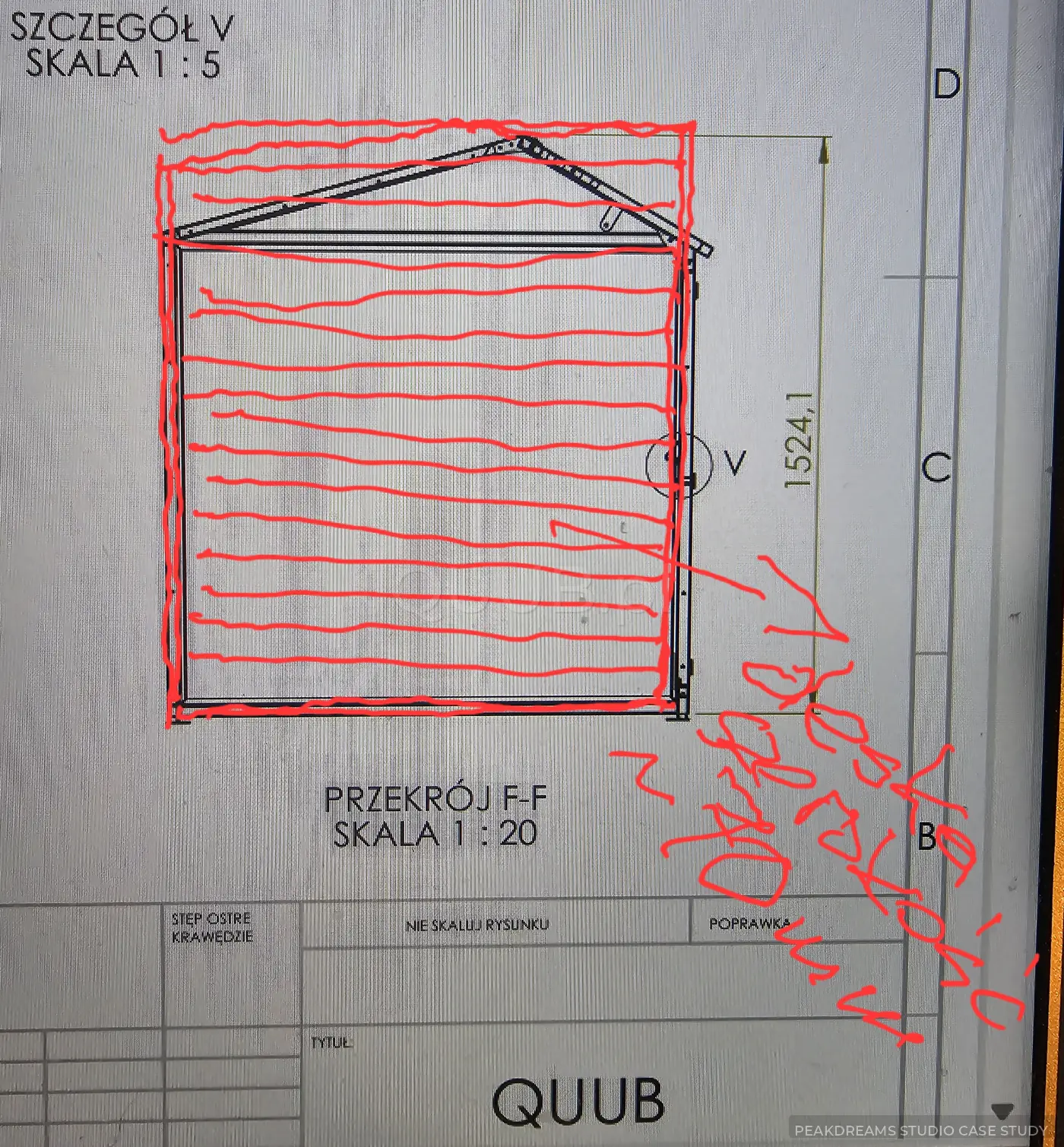

The project started from technical material and marked revisions.
The input material defined the structure, proportions and required product changes, including the timber arrangement and roof details.

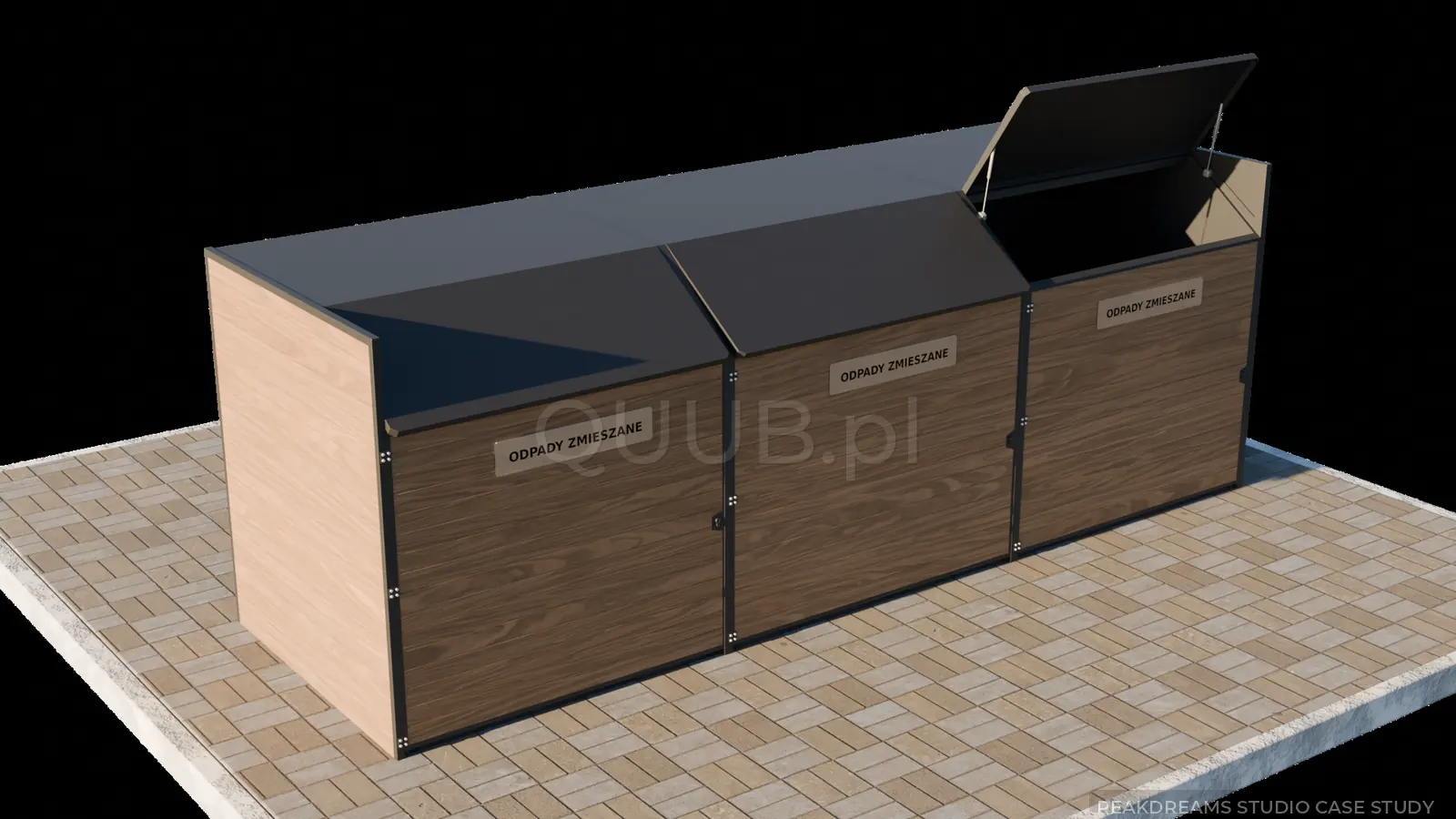

Product first, without a distracting environment.
The initial visualization was prepared without a full environment so the proportions, materials, structural divisions, roof and access to each compartment could be evaluated clearly before moving into the final scene.

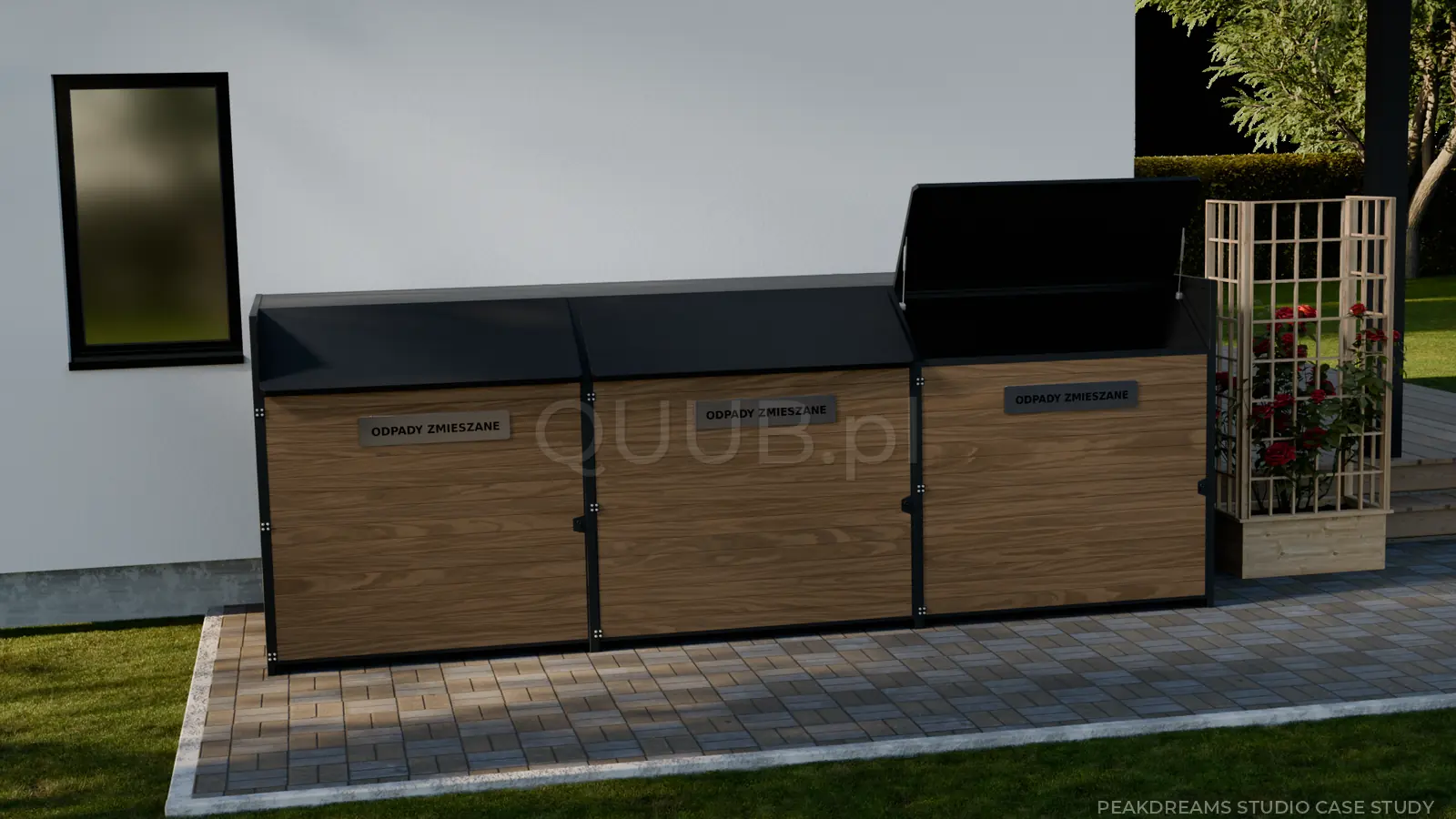

The product placed in a realistic context.
After the model was refined, the enclosure was integrated next to a building with paving and vegetation. This version shows the image before final post-production and makes the difference between raw rendering and final presentation easy to see.

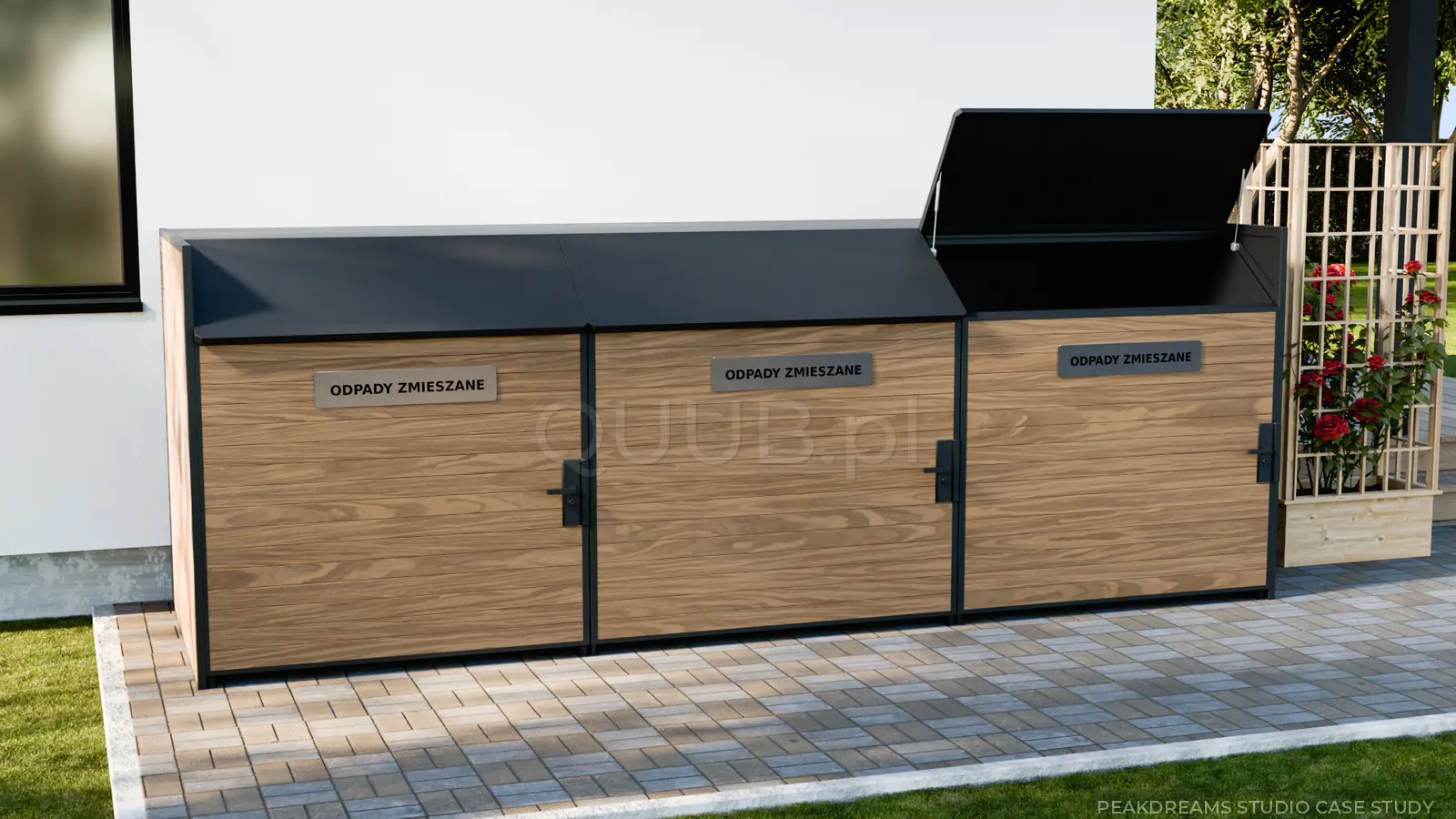

Post-production and final product presentation.
The final visual was refined for contrast, lighting, material readability and overall presentation, creating a sales-ready image without requiring a finished physical installation to be photographed.

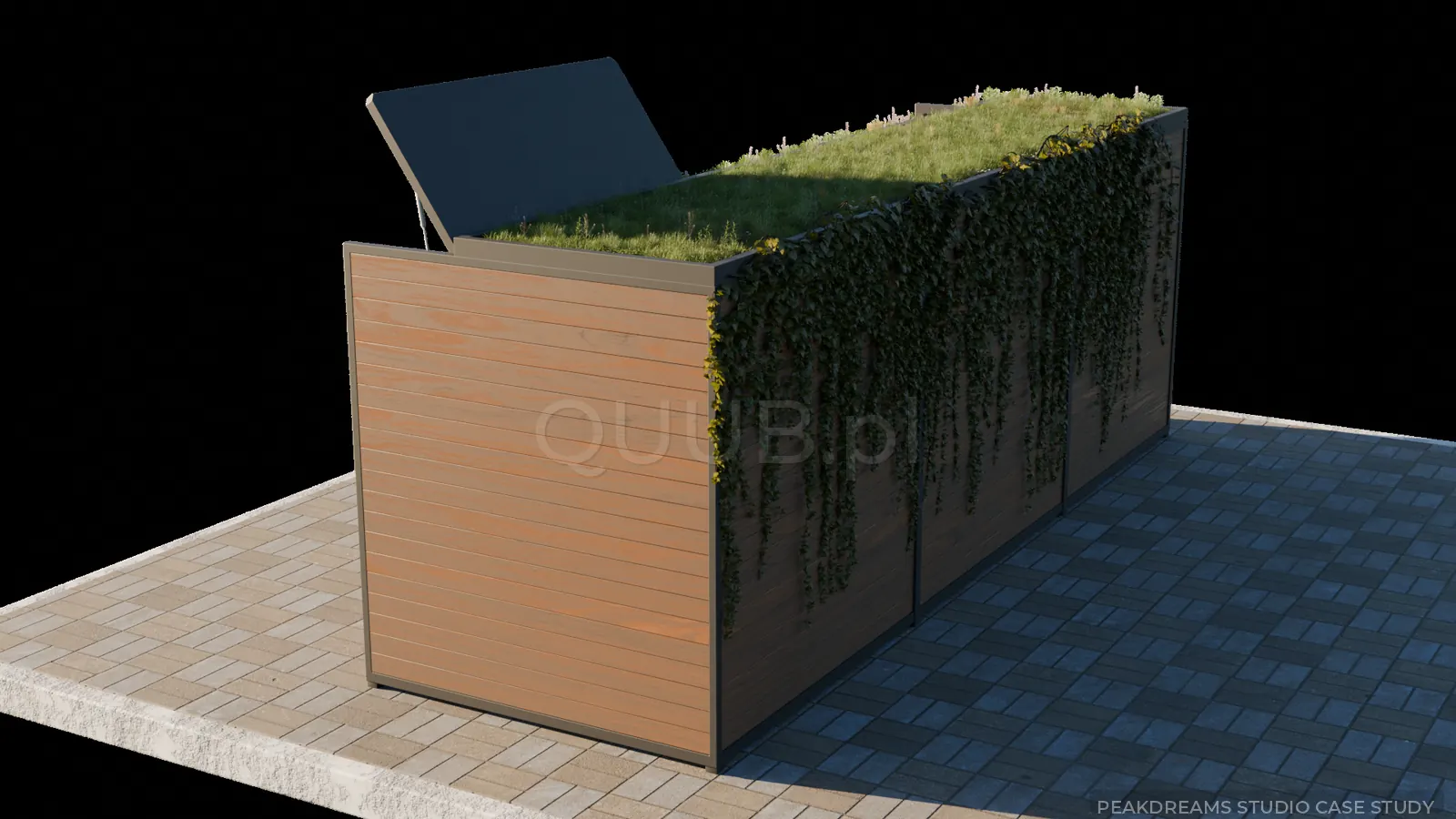

The same structure with a green roof.
The 3D asset made it possible to create another product variant without building a physical prototype. The green-roof version demonstrates how the same system can be presented with an alternate functional and material configuration.
Technical input
Turning drawings and marked notes into controlled 3D geometry.
Iterative workflow
Using a clear previsualization before investing in the final environment.
Post-production
A direct comparison between the raw render and presentation-ready image.
Variants
Showing alternate product configurations using the same 3D asset.
We can turn it into a complete 3D presentation.
Drawings, photos, CAD or even marked-up corrections can be enough to begin.
